Epoxy Thin Coating for Warehouse Factory｜CNMI

1｜System Overview

• Warehouses & logistics centers

• Factories & workshops

• Garages & parking bays

• Offices & showrooms

• Schools & hospitals

• Old floor renovation

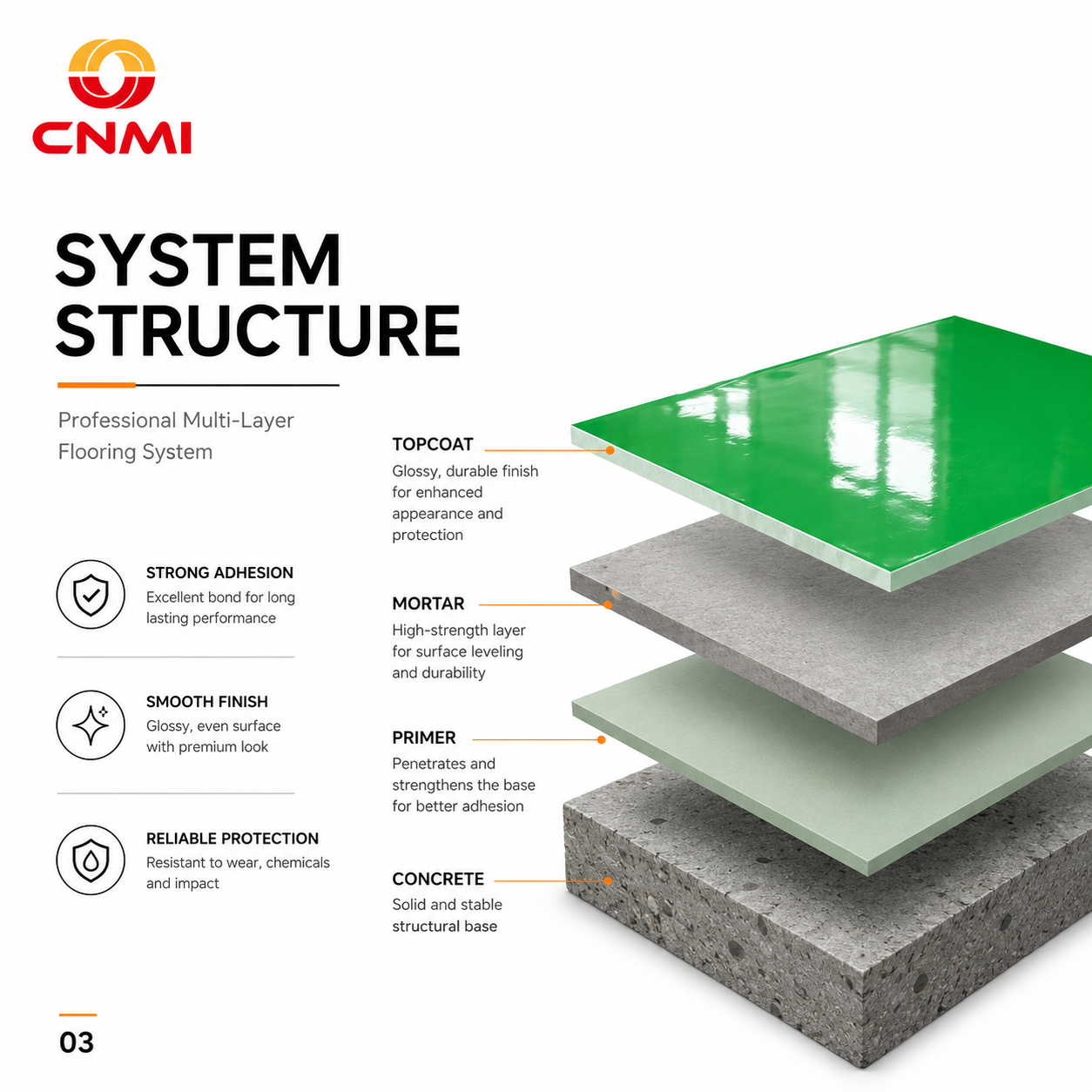

2｜System Structure (Core)

1. Concrete Base (Clean & Dry)

   ↓

2. Epoxy Primer

   ↓

3. Epoxy Mortar / Mid Coat

   ↓


4. Epoxy Middle Coat


   ↓

5. Epoxy Top Coat




3｜System Advantages

✅ Seamless & Dust-Free

✅ Excellent Wear Resistance

✅ Easy to Clean & Maintain

✅ Anti-slip (Optional)

✅ Mild Chemical Resistance

✅ Fast Installation & Fast Curing

✅ Beautiful & Uniform Finish

✅ Cost-Effective Solution

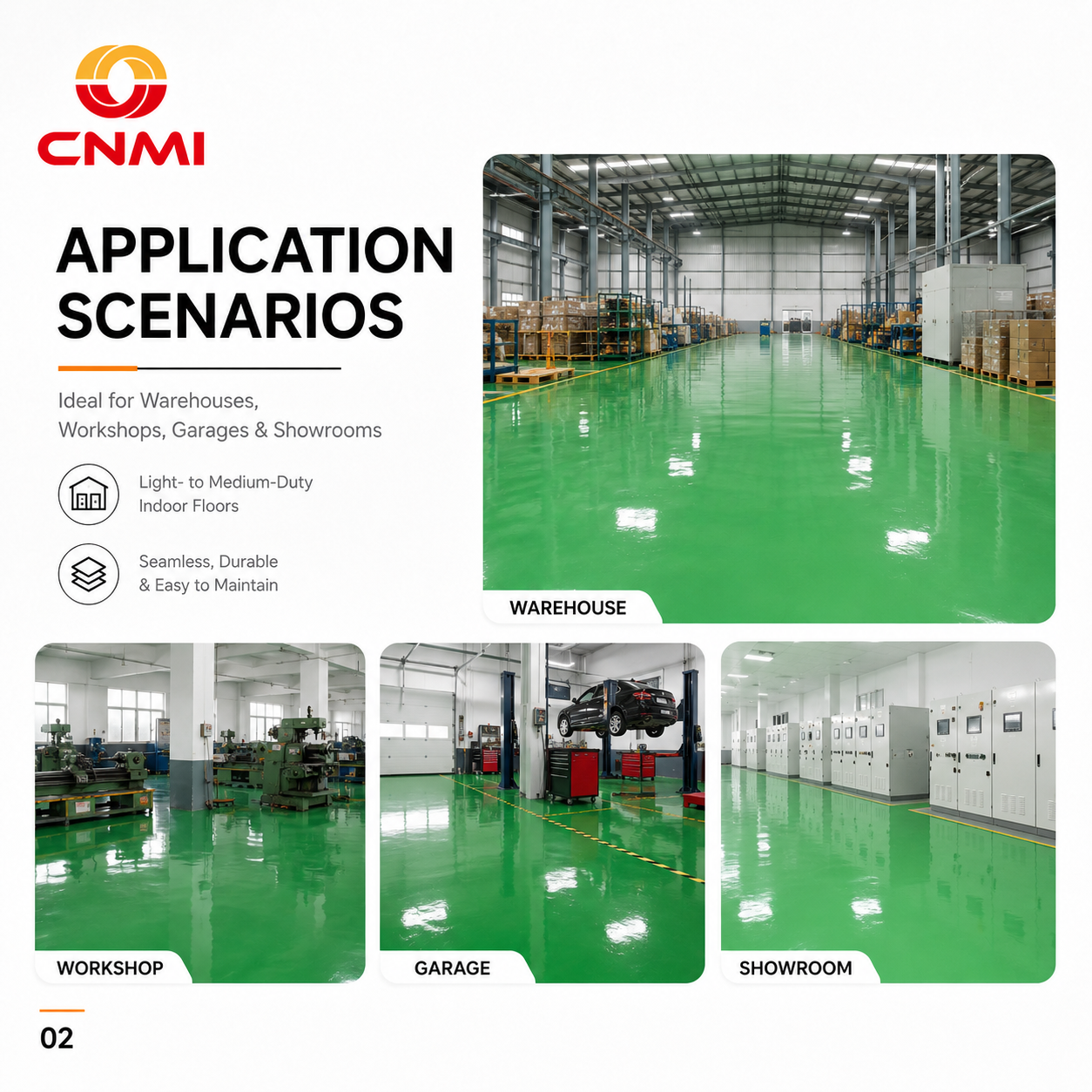

4｜Application Areas

• Industrial: Workshops, electronics factories, food processing, assembly lines

• Commercial: Offices, showrooms, hallways, supermarkets

• Storage: Warehouses, logistics centers, cold storage (indoor)

• Residential: Garages, basements, home gyms

• Public: Schools, hospitals, libraries, staircases

•

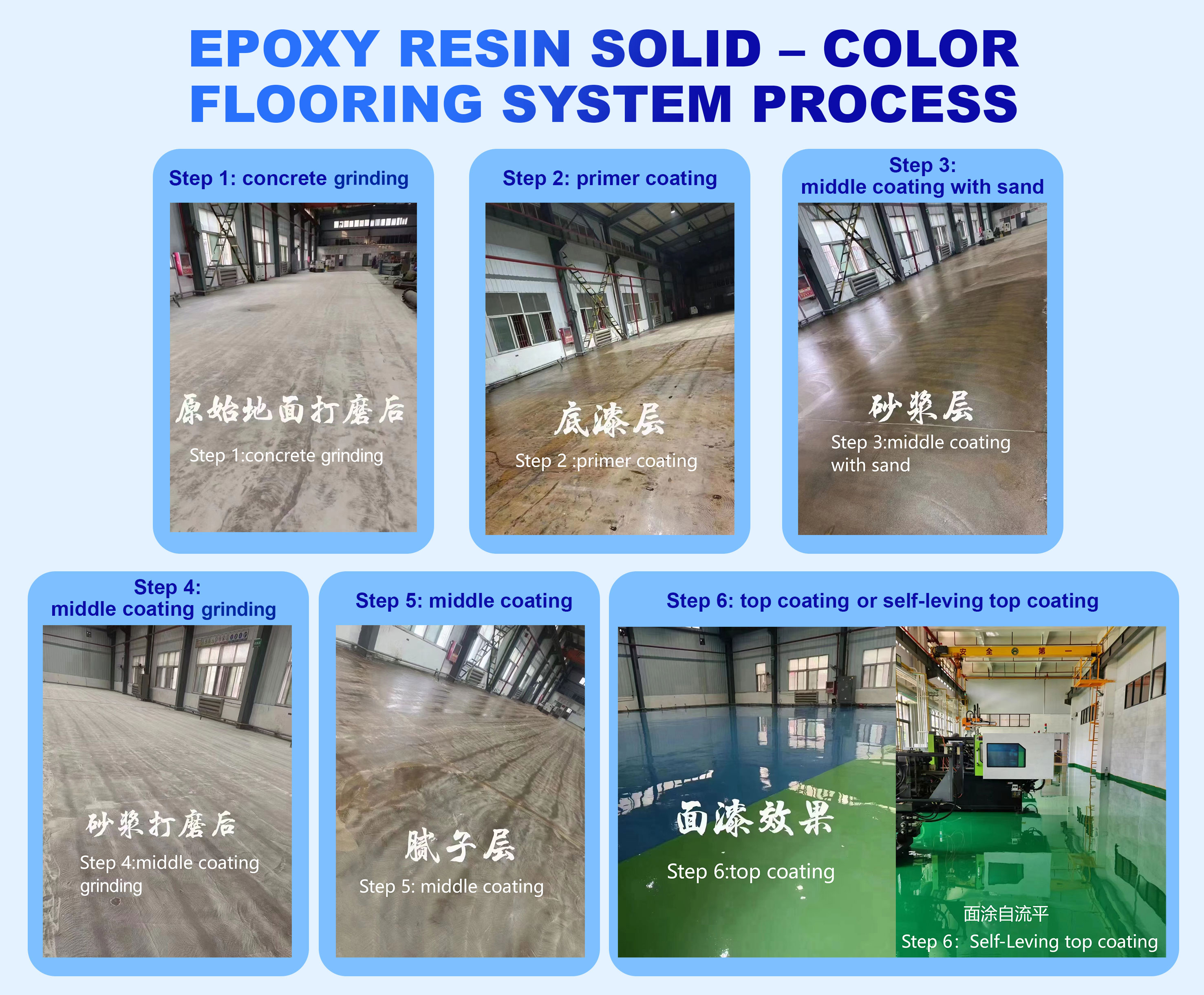

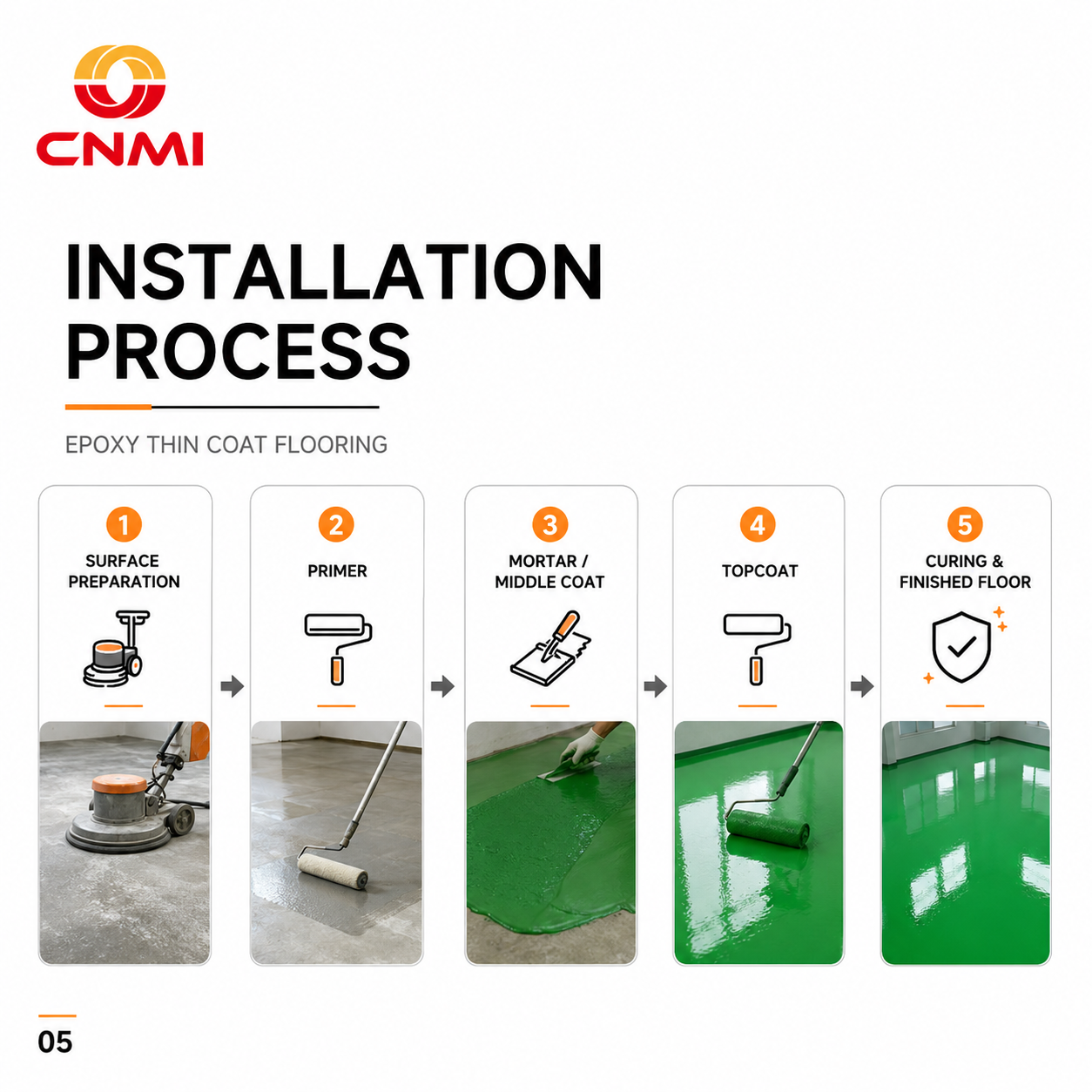

5｜Installation Process

1. Surface Preparation: Grind, clean, dry, level

2. Apply Epoxy Primer

3. Apply Mortar / Mid Coat

4. Apply Epoxy Top Coat

5. Cure completely before use

 7｜Consumption Table (kg/m²)

• Primer: 0.15 – 0.2 kg/m²

• Mid Coat / Mortar: 0.3 – 0.5 kg/m²

• Top Coat: 0.2 – 0.3 kg/m²

• Total: 0.65 – 1.0 kg/m²

7｜Technical Data

• Thickness: 0.3 – 0.8 mm

• Color: Customizable (Grey, Blue, Green, Yellow, Red)

• Curing Time: Walkable in 12h | Usable in 48h

• Hardness: ≥2H

• Adhesion: ≥2.5 MPa

• Wear Resistance: Good

• Chemical Resistance: Mild acids, alkalis, oils, detergents

• Service Life: 5 years (normal indoor use)

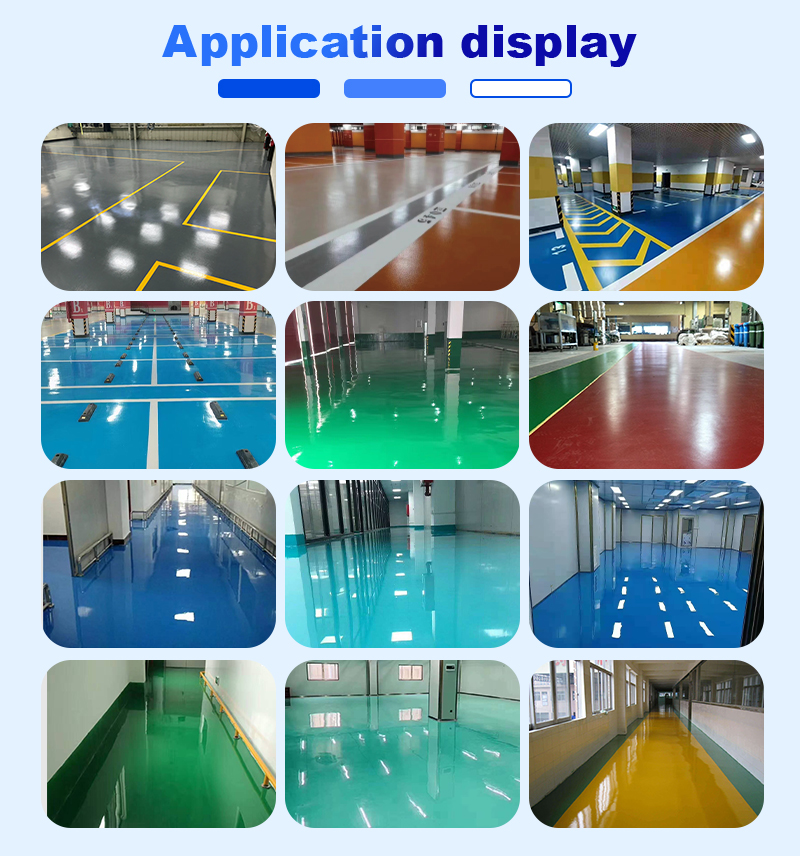

8｜Project Gallery

• Warehouse Flooring

• Factory Workshop

• Garage Floor

• Office Showroom

• School & Hospital Corridor

• Old Floor Renovation

9｜Packaging & Shipping

• Package: 20kg / 25kg pails

• Storage: Cool & dry place

• Shelf Life: 12 months

• Transport: Non-hazardous, sea / land shipping available

10｜FAQ

11｜CTA

Global delivery • Professional solution • Reliable service
