FC510
CNMI
| Quantity: | |
|---|---|
CNMI Epoxy Ultra-Wear Resistant Coating is a heavy-duty, high-performance seamless flooring system designed for industrial environments with high abrasion, frequent forklift traffic, and impact loads.
Ideal solution for:
Heavy-duty factories & workshops
Logistics centers with daily forklift operation
Warehouses with pallet trucks and steel wheels
Automotive assembly & repair plants
Pharmaceutical & food GMP areas
Airplane hangars & heavy machinery halls

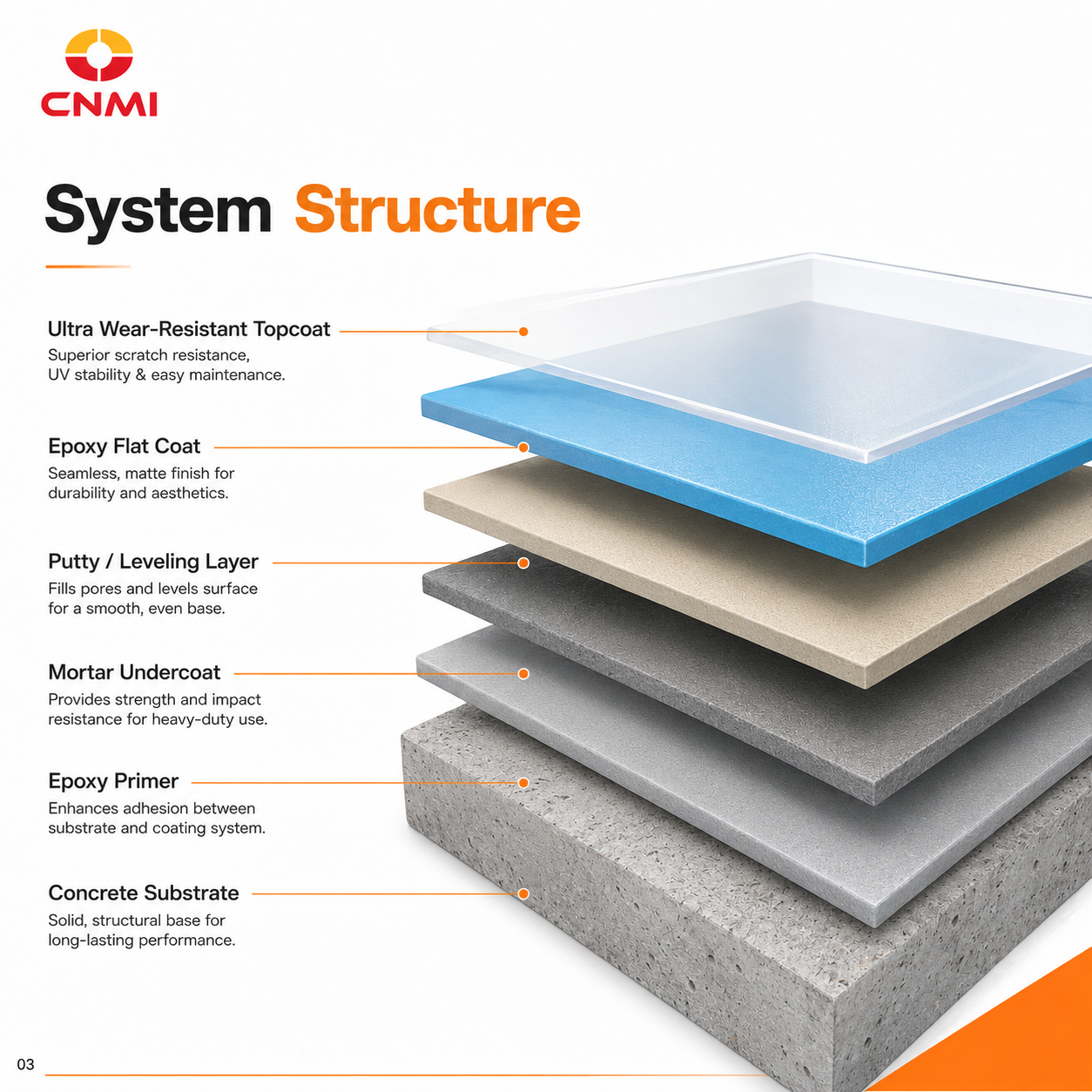

Concrete Base (Grinded, Clean & Dry)
↓
Epoxy Primer (High Penetration)
↓
Epoxy Mortar Layer (Quartz Sand Reinforced)
↓
Epoxy Middle Coat (Smoothing)
↓
Epoxy Ultra-Wear Resistant Top Coat (Contains ceramic / aluminum oxide / corundum aggregates)
✅ Extremely High Wear Resistance – Withstands steel wheel traffic & daily abrasion
✅ Excellent Impact & Scratch Resistance – Hard aggregate reinforcement
✅ Seamless & Dust-Free – Hygienic, easy to clean
✅ Heavy Load Capacity – Suitable for forklifts, pallet jacks, heavy racks
✅ Chemical Resistance – Oils, greases, mild acids & alkalis
✅ Anti-slip Option – Textured or smooth finish available
✅ Long Service Life – 8–12 years under normal heavy-duty use
✅ Cost-Effective Heavy-Duty Solution – Thinner than self-leveling, yet durable

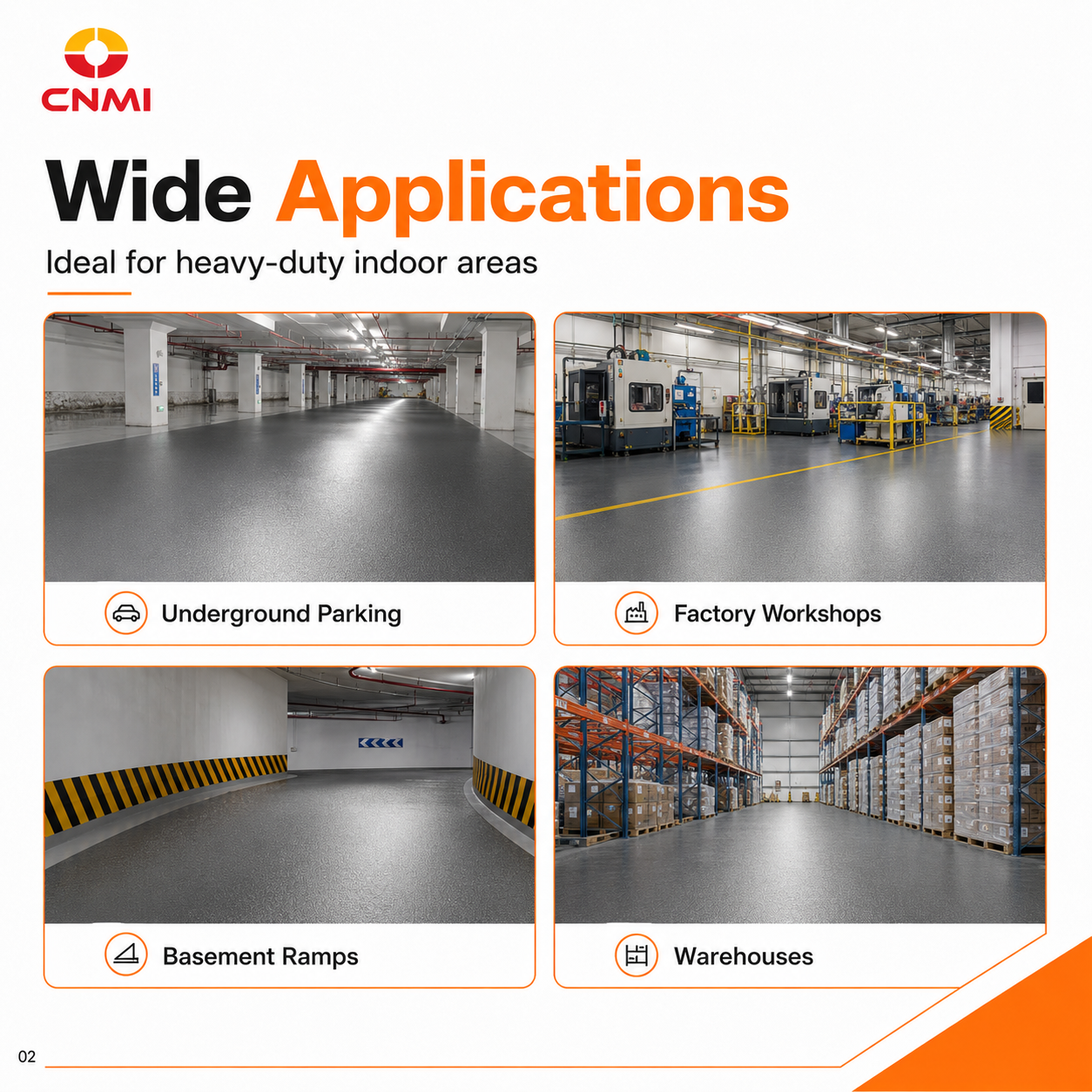

Industrial: Heavy equipment workshops, steel plants, forging shops, logistics hubs
Commercial: High-traffic warehouses, loading bays, parking garages (heavy zones)
Transport: Bus depots, truck terminals, container yards
Public: Subway stations, airport cargo areas, industrial museums

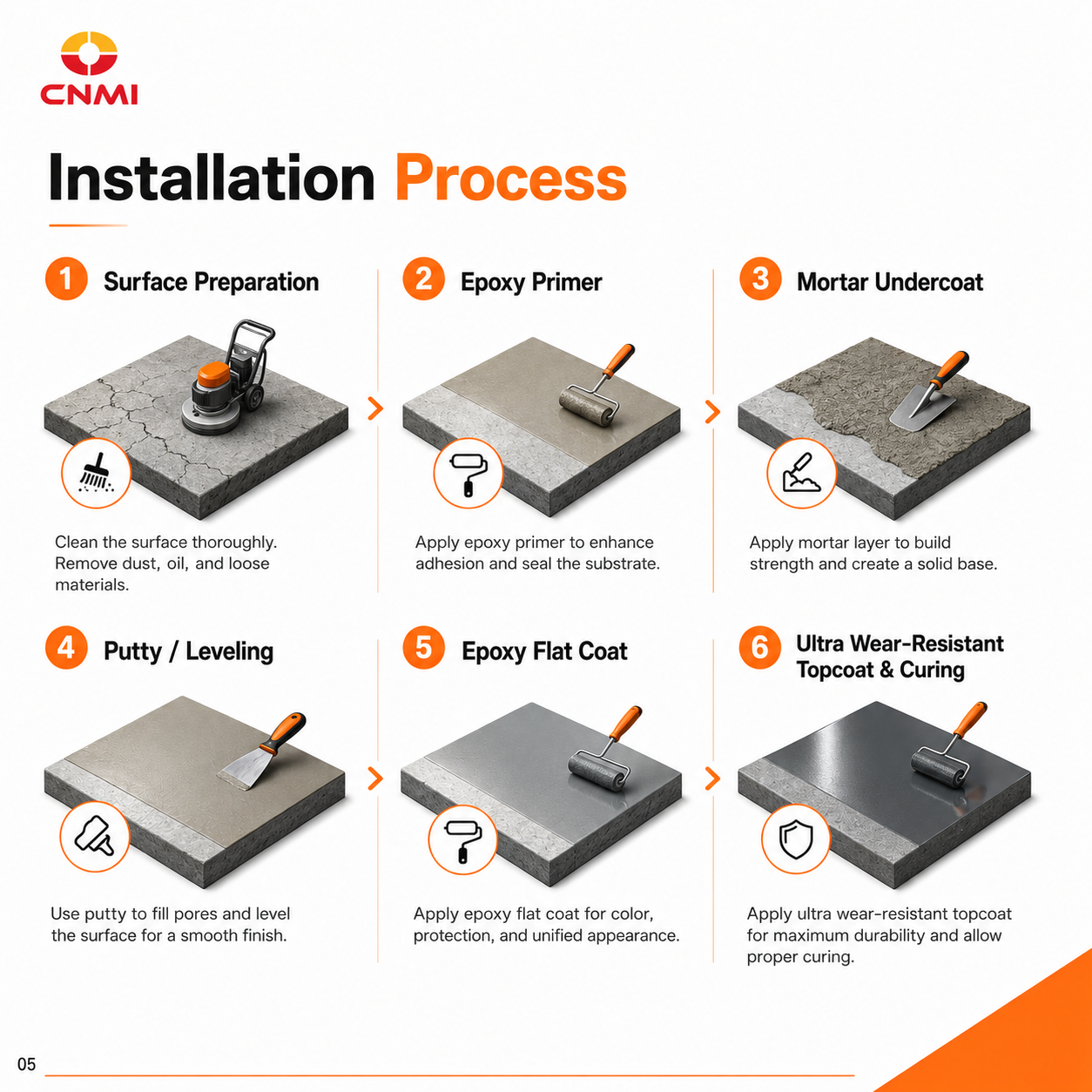

Surface Preparation – Shot blasting or grinding, vacuum clean
Apply Epoxy Primer – Roller application, ensure full coverage
Apply Mortar Layer – Trowel epoxy mortar to fill irregularities
Apply Middle Coat – Smooth coating for leveling
Apply Ultra-Wear Top Coat – Roller or trowel with wear-resistant aggregates
Cure completely – Light traffic in 24h, full traffic in 5–7 days
Primer: 0.15 – 0.25 kg/m²
Mortar Layer: 0.5 – 1.0 kg/m² (depending on thickness)
Middle Coat: 0.2 – 0.3 kg/m²
Ultra-Wear Top Coat: 0.3 – 0.5 kg/m²
Total: 1.15 – 2.05 kg/m² (for standard 1–1.5mm system)
Thickness: 0.8 – 1.5 mm (can be customized to 2mm)
Color: Customizable (Grey, Green, Blue, Yellow, Red, Orange)
Curing Time: Walkable in 12–24h | Light traffic 48h | Full cure 7 days
Hardness (Pencil): ≥5H
Adhesion: ≥2.5 MPa (concrete failure)
Wear Resistance (Taber): ≤0.03g weight loss – excellent
Chemical Resistance: Oils, hydraulic fluids, mild acids (10% H₂SO₄), alkalis (20% NaOH)
Service Life: 8–12 years in heavy-duty indoor conditions
Temperature Range: -30°C to +80°C
Heavy Factory Floor – Daily Forklift Traffic
Logistics Warehouse – Steel Wheel Racks
Automotive Assembly Line – Oil & Wear Resistant
Airplane Hangar – Impact Resistance
Pharma GMP Corridor – Seamless & Clean
Old Concrete Renovation – Ultra-Wear Coating
Package: 20kg / 25kg pails (A+B separate)
Storage: Cool & dry place (5–35°C)
Shelf Life: 12 months (unopened)
Transport: Non-hazardous for most components, sea/land shipping available
MSDS & TDS available on request
Q1: Can it be used outdoors?
A: Standard epoxy will yellow under UV. For outdoors, add a UV-stable polyurethane topcoat or use polyaspartic system.
Q2: How long does it last under heavy forklift traffic?
A: 8–12 years with proper installation. For multi-shift, aggressive turning forklifts, we recommend a 2mm total thickness.
Q3: Is it slip-resistant?
A: The standard finish is semi-gloss and moderately slip-resistant. For wet or oily areas, we can add anti-slip aggregate (silica or aluminum oxide) to achieve high slip resistance (R10–R13).
Q4: How soon can forklifts drive on it?
A: Light foot traffic: 24 hours. Forklift traffic: 7 days minimum at 25°C. Lower temperatures extend curing time.
Q5: Can it be applied over old epoxy or existing coatings?
A: No. Old coatings must be removed by shot blasting to expose bare concrete. Epoxy needs a porous substrate for mechanical bond.
Q6: What if my concrete is damp?
A: Concrete moisture must be ≤6% (carbide method) or internal RH ≤75%. For higher moisture, use a moisture-tolerant primer or vapor barrier.
Q7: Does it resist chemicals like brake fluid or battery acid?
A: Yes – it resists oils, greases, diesel, brake fluid, and mild acids (10% H₂SO₄). For strong acids (30%+), upgrade to a chemical-resistant grade.
Q8: Can colors be customized?
A: Yes, we offer RAL colors and custom matching. Minimum order quantity may apply.
Q9: Is it suitable for food & pharmaceutical areas?
A: Yes – seamless, non-porous, and easy to sanitize. Compliant with GMP and HACCP standards.
Q10: Do you provide on-site technical support?
A: Yes, for container orders or projects >3000 m², we can send a technical supervisor to guide installation.
