Key Details of EPDM Construction: Procedures, Quality Control and Precautions

1. Introduction

EPDM (Ethylene Propylene Diene Monomer) is a synthetic rubber material formed by the copolymerization of ethylene, propylene and a small amount of diene monomers. It has excellent comprehensive performance, including strong resistance to UV radiation, ozone, high and low temperatures, and chemical corrosion, as well as good flexibility and tensile strength. In the construction industry, EPDM is widely used in roofing waterproofing systems, outdoor fitness fields, children's activity areas, basement waterproofing, and building expansion joints, and has become an important material to ensure the durability and safety of construction projects. Unlike traditional construction materials, EPDM construction has high requirements for operational precision and detail control. The construction process involves multiple links such as material preparation, surface treatment, bonding, sealing, and curing. Each link has strict operational standards and key details. If the construction details are not in place, it will easily lead to quality hidden dangers such as membrane bubbling, seam leakage, and material aging acceleration, which will affect the service life of the project and increase maintenance costs.

At present, there are still some problems in EPDM construction in practical projects, such as non-standard surface treatment, improper selection of bonding materials, irregular operation of overlapping seams, and insufficient curing maintenance. These problems are mostly caused by the neglect of construction details by construction personnel. Therefore, it is of great practical significance to study the key details of EPDM construction, clarify the operational standards of each link, and summarize the quality control points. This paper combines the practical experience of EPDM construction and relevant technical standards, and focuses on analyzing the key details of each construction link to provide a reference for the standardized construction of EPDM.

2. Pre-construction Preparation Details

Pre-construction preparation is the foundation of EPDM construction, and the rationality and thoroughness of preparation directly affect the smooth progress of subsequent construction and the final construction quality. The key details of pre-construction preparation mainly include material preparation, construction tool preparation, base surface inspection and treatment, and construction environment control.

2.1 Material Preparation Details

The selection and inspection of EPDM materials are the primary links to ensure construction quality. First, EPDM materials (including membranes, granules, adhesives, sealants, etc.) must meet the relevant national or industry standards, and the manufacturer's qualification certificate, product inspection report and other documents must be checked to ensure that the material performance meets the design requirements. For EPDM membranes, it is necessary to check the thickness, width, tensile strength, elongation at break and other indicators. The common thickness of roofing membranes is 1.2mm-2.0mm, and the thickness of outdoor flooring granules is usually 5mm-20mm according to the application scenario, which must be consistent with the design requirements. For adhesives and sealants, they must be specially matched with EPDM materials to avoid compatibility problems leading to poor bonding effect. It is strictly prohibited to use expired or deteriorated materials. The storage of materials also needs to pay attention to details: EPDM materials should be stored in a cool, dry and ventilated warehouse, avoiding direct sunlight and rain, and the storage temperature should be controlled between 5℃-30℃. The materials should be placed flat, and heavy objects should not be stacked on them to prevent deformation. For self-adhesive EPDM membranes, attention should be paid to protecting the adhesive layer to avoid contamination.

2.2 Construction Tool Preparation

The selection and inspection of construction tools directly affect the construction efficiency and operation quality. Common EPDM construction tools include measuring tools (tape measure, level ruler, thickness gauge), cutting tools (utility knife, heavy-duty blades, cutting machine), bonding tools (roller, brush, scraper), cleaning tools (broom, vacuum cleaner, pressure washer), and safety protection tools (gloves, safety glasses, knee pads, fall protection harness). Before construction, it is necessary to check whether all tools are in good condition: the cutting tool should be sharp to ensure that the cut is flat and free of burrs; the roller should be clean and free of debris to ensure uniform bonding pressure; the measuring tool should be calibrated to ensure the accuracy of measurement. For large-scale construction, it is also necessary to prepare mixing equipment (for mixing EPDM granules and binders) and compaction equipment to ensure the compactness of the paving layer.

2.3 Base Surface Inspection and Treatment Details

The base surface is the carrier of EPDM materials, and its flatness, cleanliness and dryness directly affect the bonding effect of EPDM materials. This link is the key to preventing later problems such as bubbling and detachment, and is also one of the most easily neglected details in construction.

First, the base surface must be inspected. For roofing and flooring base surfaces, the flatness error should not exceed 3mm per 3 meters, and there should be no obvious protrusions, depressions, cracks or potholes. For cracks with a width of more than 0.5mm, they should be filled and repaired with special sealants, and then smoothed. For the base surface with unevenness, it should be leveled with cement mortar to ensure the flatness of the base surface. Second, the base surface must be clean and free of dust, oil, grease, loose particles and other impurities. For oil stains, it is necessary to use a detergent to clean them, then rinse them with clean water and dry them thoroughly; for dust and debris, it can be cleaned with a broom, vacuum cleaner or pressure washer. Third, the base surface must be dry. The moisture content of the base surface should not exceed 5% (for roofing) or 10% (for flooring). A moisture meter can be used to detect it. If the moisture content is too high, it will affect the adhesion of the adhesive and lead to the detachment of EPDM materials. It is necessary to dry the base surface naturally or use drying equipment until the moisture content meets the requirements. In addition, for the old base surface, it is necessary to remove the original damaged materials and repair the damaged parts to ensure the stability of the base surface.

2.4 Construction Environment Control

EPDM construction has strict requirements on the environment, and the construction environment directly affects the bonding effect and curing quality of materials. The optimal construction temperature is 5℃-35℃. When the temperature is lower than 5℃, the viscosity of the adhesive decreases, the bonding effect is poor, and the curing time of the material will be prolonged; when the temperature is higher than 35℃, the adhesive will cure too fast, which is not conducive to the adjustment of the material position, and it is easy to produce bubbles. In addition, construction should be avoided in rainy, windy (wind force greater than 5 levels) or snowy weather. Rainwater will affect the dryness of the base surface and the adhesion of the adhesive; strong wind will cause the EPDM membrane to be difficult to lay flat and easy to be contaminated. If construction is carried out in a humid environment, the curing time of the material should be appropriately extended to ensure the bonding strength. It is also necessary to avoid construction in direct sunlight for a long time, so as to prevent the EPDM material from aging and deforming in advance.

3. Key Details of EPDM Construction Process

The EPDM construction process varies slightly according to the application scenario (roofing, flooring, waterproofing), but the core links include measuring and cutting, laying and bonding, seam treatment, and sealing. Each link has strict operational details, and only by standardizing the operation can the construction quality be ensured.

3.1 Measuring and Cutting Details

Measuring and cutting is the premise of ensuring the fit of EPDM materials. Before cutting, it is necessary to accurately measure the area of the construction surface, and take into account the overlapping width of the seams and the reserved length at the edges (usually 50mm-100mm) to avoid insufficient material or waste. When measuring, it is necessary to measure multiple times to ensure the accuracy of the data, especially for irregular construction surfaces (such as corners, pipe roots), it is necessary to make a template first, and then cut according to the template to ensure that the material fits the construction surface perfectly.

When cutting EPDM membranes, a sharp utility knife or cutting machine should be used, and the cutting should be straight and flat, without burrs, cracks or uneven cuts. The cutting speed should be uniform to avoid excessive force leading to material damage. For EPDM granules used in flooring, they should be mixed with binders according to the specified ratio (usually 4:1 to 6:1 by weight, depending on the application scenario) and stirred thoroughly for 2-3 minutes, and then used immediately to avoid the binder curing in advance. It should be noted that the same batch of granules should be used in the same construction area to avoid color difference. After cutting, the materials should be sorted and placed according to the construction sequence to avoid confusion during construction.

3.2 Laying and Bonding Details

Laying and bonding is the core link of EPDM construction, and the key details include the order of laying, the control of bonding pressure, and the treatment of air bubbles.

For EPDM roofing construction, the laying order should follow the principle of "from low to high, from top to bottom", that is, start laying from the low-lying part of the roof (such as the drainage port), and then lay upwards to ensure that the water flow can smoothly flow along the membrane surface without water accumulation. For large-area roofing, the whole sheet laying should be adopted as much as possible to reduce the number of seams and avoid leakage hidden dangers. When laying, the EPDM membrane should be laid flat, without wrinkles or folds. If there are wrinkles, it should be adjusted in time, and it is not allowed to stretch the membrane forcibly, so as to avoid reducing the tensile strength of the material and causing cracks in the later stage.

Bonding operation is the key to ensuring the combination of EPDM materials and the base surface. Before bonding, the base surface and the back of the EPDM membrane should be evenly coated with a special adhesive. The coating thickness should be controlled at 0.3mm-0.5mm, and it should be uniform without missing coating or accumulation. After coating the adhesive, it is necessary to wait for the solvent to volatilize (the time is usually 5-15 minutes, depending on the temperature and humidity of the environment). When the adhesive on the surface becomes sticky but not sticky to the hand, the membrane can be laid on the base surface. After laying, a roller should be used to roll and compact the membrane from the center to the surroundings, with a rolling pressure of 0.3MPa-0.5MPa, so as to ensure that the membrane is closely bonded with the base surface and the air between the membrane and the base surface is completely discharged. For self-adhesive EPDM membranes, the release liner should be slowly peeled off while pressing the membrane onto the base surface, and a roller should be used to smooth out air bubbles in time.

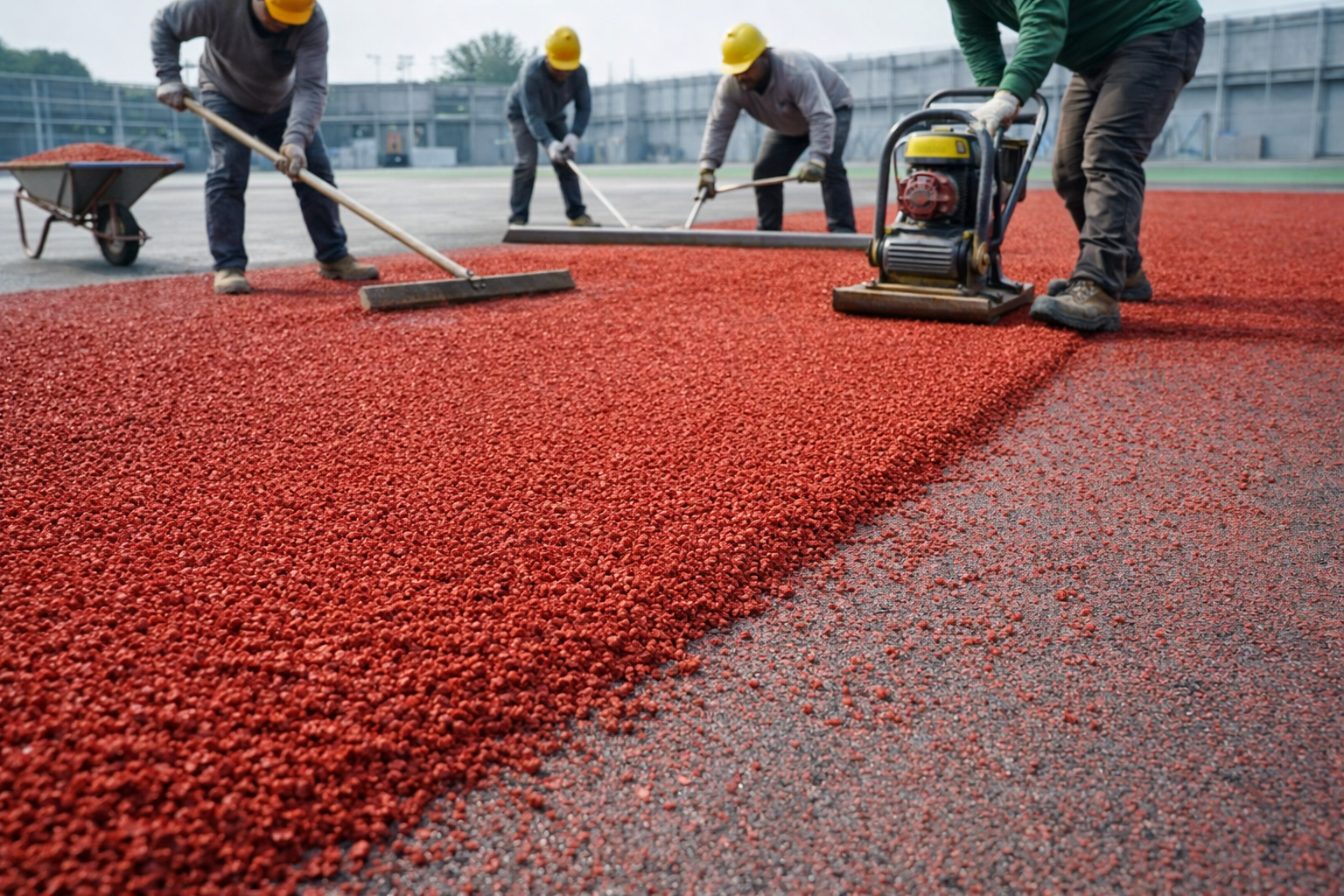

For EPDM flooring construction, the laying should be carried out in layers. The bottom layer is paved with EPDM granules and binders (thickness 8mm-10mm), which is compacted mechanically to ensure the compactness is not less than 95%, and then cured for 24 hours. The surface layer is paved with colored EPDM granules and binders (thickness 5mm-10mm), which is scraped and compacted to ensure flatness and smoothness, and then cured for 24 hours. During the paving process, the thickness should be kept uniform to meet the relevant standards.

3.3 Seam Treatment Details

The seam of EPDM materials is the weakest link in construction, and it is also the key part prone to leakage. The quality of seam treatment directly determines the waterproof effect and service life of the project. The key details of seam treatment include overlapping width control, seam cleaning, adhesive coating, and compaction curing.

First, the overlapping width of the seams should be strictly controlled according to the design requirements, usually 80mm-100mm for roofing and 50mm-80mm for flooring. The overlapping part should be flat and free of wrinkles, and the overlapping position should be avoided at the drainage port, corner and other key parts. Second, before seam bonding, the overlapping surface must be cleaned thoroughly to remove dust, oil and other impurities, and the surface should be dried. If the surface is contaminated, the bonding effect will be seriously affected. Third, the overlapping surface should be evenly coated with a special seam adhesive, and the coating thickness should be slightly thicker than that of the base surface bonding (0.5mm-0.7mm), ensuring that the adhesive covers the entire overlapping surface without missing coating. After the adhesive is volatilized to the sticky state, the two layers of membranes are pressed together, and a seam roller is used to roll and compact the seam from the center to both sides, so as to ensure that the seam is closely bonded and the air is completely discharged. After compaction, the excess adhesive squeezed out from the seam should be scraped off to avoid affecting the appearance and subsequent construction. For important projects, a seam tape or cured cover strip can be added on the surface of the seam to enhance the sealing effect of the seam.

It should be noted that the seam treatment should be carried out continuously, and it is not allowed to interrupt the operation halfway, so as to avoid the adhesive curing and affecting the bonding effect. At the same time, the seam should not be constructed in rainy or humid weather to prevent moisture from entering the seam and causing poor bonding.

3.4 Sealing Treatment Details

Sealing treatment is mainly aimed at the key parts such as the edge of the EPDM material, the pipe root, the drainage port, and the expansion joint, which are prone to water leakage. These parts have complex structures and are easy to have gaps, so strict sealing treatment is required.

For the edge of the EPDM membrane, after laying and bonding, the edge should be folded up by 50mm-100mm and fixed with special fasteners (such as termination bars), and then sealed with sealant to prevent water from entering from the edge. For the pipe root, the EPDM membrane should be cut into a "petal shape" and wrapped around the pipe root, the overlapping part should be bonded firmly, and the gap between the membrane and the pipe root should be filled with sealant to ensure that there is no gap. For the drainage port, the EPDM membrane should be laid to the bottom of the drainage port, and the joint between the membrane and the drainage port should be sealed with sealant to ensure smooth drainage and no water accumulation. For expansion joints, EPDM sealants or EPDM strips should be used for filling, and the filling should be compact and full, and the surface should be smooth, so as to adapt to the expansion and contraction of the building and avoid cracking of the sealant.

4. EPDM Construction Quality Control Details

Quality control runs through the entire EPDM construction process, and the key details of quality control include process inspection, material re-inspection, and final acceptance.

4.1 Process Inspection

In the process of construction, it is necessary to carry out real-time inspection of each link to find and solve problems in time. For the base surface treatment, after the treatment is completed, it is necessary to inspect the flatness, cleanliness and dryness, and only after passing the inspection can the next construction be carried out. For the measuring and cutting link, it is necessary to inspect the size and cut of the material to ensure that it meets the design requirements. For the laying and bonding link, it is necessary to inspect the bonding degree between the membrane and the base surface, check whether there are bubbles, wrinkles, detachment and other phenomena, and if bubbles are found, they should be cut open in time, the air should be discharged, and then bonded again. For the seam treatment, it is necessary to inspect the overlapping width, bonding tightness and sealing effect of the seam, and use a water test to check whether there is leakage. For the flooring construction, it is necessary to inspect the thickness, compactness and flatness of each layer, and adjust in time if there is any non-compliance.

4.2 Material Re-inspection

In addition to the inspection of materials before construction, random re-inspection of materials should be carried out during construction to ensure that the performance of the materials used in the construction process is consistent with the standard. For EPDM membranes, random inspection can be carried out on tensile strength, elongation at break and other indicators; for adhesives and sealants, random inspection can be carried out on viscosity, curing time and bonding strength. If unqualified materials are found, they should be immediately stopped using and replaced with qualified materials to avoid affecting the construction quality.

4.3 Final Acceptance

After the completion of EPDM construction, final acceptance should be carried out in accordance with relevant standards and design requirements. The acceptance content includes: the flatness of the construction surface, the bonding degree of the material, the quality of the seam and sealing part, the thickness of the material (for flooring), and the waterproof effect (for roofing and waterproofing projects). For waterproof projects, a water test should be carried out. The water storage time should not be less than 24 hours, and there should be no leakage in each part. For flooring projects, the flatness, skid resistance and color uniformity should be inspected. Only after all acceptance items are qualified can the project be delivered for use. For unqualified items, rectification should be carried out in time, and re-acceptance should be carried out after rectification until it is qualified.

5. Common Problems and Solutions in EPDM Construction

In the process of EPDM construction, due to the neglect of details, some common problems often occur. It is necessary to master the causes and solutions of these problems to ensure the construction quality.

5.1 Bubbles in the Membrane

The main causes of bubbles are: insufficient drying of the base surface, excessive moisture content; incomplete volatilization of the adhesive solvent when bonding; uneven rolling pressure, failure to discharge the air between the membrane and the base surface. The solution is: for small bubbles (diameter less than 50mm), a small hole can be pricked with a needle to discharge the air, then inject the adhesive, and press it firmly with a roller; for large bubbles (diameter greater than 50mm), the membrane should be cut open, the base surface should be dried again, the adhesive should be re-coated, and then bonded and compacted. To prevent the occurrence of bubbles, it is necessary to strictly control the dryness of the base surface, wait for the adhesive solvent to volatilize completely before bonding, and ensure uniform rolling pressure.

5.2 Seam Leakage

The main causes of seam leakage are: insufficient overlapping width; incomplete cleaning of the overlapping surface; uneven coating of the adhesive, missing coating; insufficient compaction of the seam. The solution is: reprocess the leaking seam, cut open the overlapping part, clean the surface thoroughly, re-coat the adhesive, ensure the overlapping width meets the requirements, and then compact it with a roller. For serious leakage, the entire seam should be reprocessed, and a seam tape can be added to enhance the sealing effect. To prevent seam leakage, it is necessary to strictly follow the seam treatment standards and pay attention to every detail of the seam operation.

5.3 Material Detachment

The main causes of material detachment are: poor quality of the adhesive; incompatible adhesive and EPDM material; insufficient drying of the base surface; uneven coating of the adhesive. The solution is: remove the detached material, clean the base surface again, replace with a qualified and compatible adhesive, re-coat the adhesive and bond, and compact it firmly. To prevent material detachment, it is necessary to select a special adhesive matched with EPDM materials, strictly control the dryness of the base surface, and ensure uniform coating of the adhesive.

5.4 Color Difference of Flooring

The main cause of color difference is the use of different batches of EPDM granules in the same construction area. The solution is: use the same batch of granules in the same area, and if color difference is found, re-pave the local area. To prevent color difference, it is necessary to plan the use of materials in advance and ensure that the same area uses granules from the same batch.

6. Construction Precautions

In addition to the above key details, the following precautions should also be paid attention to in EPDM construction to ensure the safety and quality of construction:

1. Construction personnel must undergo professional training, be familiar with the performance of EPDM materials and the operation standards of each construction link, and hold a certificate to work. During construction, they should wear personal protective equipment such as gloves, safety glasses and knee pads to avoid injury.

2. During the construction process, the construction site should be kept clean and tidy, and the construction waste should be cleaned up in time to avoid contamination of the EPDM material and the base surface.

3. The adhesive and sealant used in construction are flammable and volatile materials, so fire prevention measures should be taken at the construction site, and smoking is strictly prohibited. At the same time, good ventilation should be maintained to avoid the accumulation of harmful gases.

4. After the completion of construction, curing maintenance should be carried out. The curing time is usually 72 hours (under normal temperature and humidity). During the curing period, no heavy objects should be stacked on the construction surface, and no personnel should step on it at will to avoid damaging the EPDM material. If the temperature is low or the humidity is high, the curing time should be appropriately extended.

5. For EPDM roofing construction, attention should be paid to the protection of the membrane during the construction process, and sharp objects should not be used to scratch the membrane to avoid damage. After the completion of construction, regular inspection and maintenance should be carried out to find and solve problems in time.

6. In the process of material transportation and handling, light loading and unloading should be carried out to avoid damage to the EPDM membrane or granules. For self-adhesive membranes, attention should be paid to protecting the adhesive layer to avoid contamination.

7. Conclusion

EPDM construction is a systematic project with high requirements for detail control. The quality of EPDM construction depends on every link from pre-construction preparation to post-construction curing. The key to ensuring the construction quality lies in strictly controlling the material selection and inspection, doing a good job in base surface treatment, standardizing the operation details of laying, bonding, seam and sealing, strengthening process quality control, and paying attention to construction precautions. Only by paying attention to every detail in the construction process, standardizing the operation behavior, and solving the common problems in time can the excellent performance of EPDM materials be fully exerted, the durability and stability of the project be improved, and the service life of the project be extended.

With the continuous development of the construction industry, the application of EPDM materials will become more and more extensive. It is necessary to further summarize the construction experience, improve the construction technology, pay more attention to the details of construction, and promote the standardized and high-quality development of EPDM construction, so as to provide more reliable guarantee for the safety and durability of construction projects.
